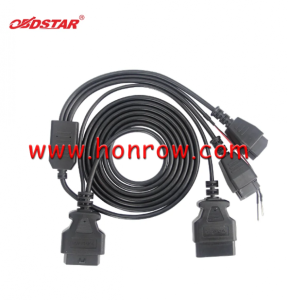

FCA 12+8 ADAPTER Functions:
1. Used in key programming and cluster calibration via OBDII
2. Used with other diagnostic devices to read and clear fault code
3. It can not only work together with OBDSTAR X300 DP, X300 DP Plus, but also Autel MaxiSYS and Autel IM608.
How to Use FCA 12+8:
Locate and unplug the 12pin and 8PIN connectors of the SGW module, then connect the FCA 12+8 directly to the 12pin and 8pin (two connectors connected to the SGW) connector on the car. At this point, normal communication with the car can be achieved.
The following models must use this connector
1.For CHRYSLER
For 2018-CHRYSLER 300
For 2018-CHRYSLER PACIFICA
2. For DODGE
For 2018-DODGE CHALLENGER
For 2018-DODGE CHARGER
For 2018-DODGE DURANGO
For 2018-DODGE JOURNEY
For 2018-DODGE RAM
3.For JEEP
For 2018-JEEP CHEROKEE
For 2018-JEEP GRAND CHEROKEE
For 2018-JEEP COMPASS
For 2018-JEEP WRANGLER
For 2018-JEEP RENEGADE
4. For MASERATI
For 2018-MASERATI, include GHIBLI, LEVANTE,PRESIDENT
5. FIAT
For 2018-FIAT
